FSC Maraba / Acailandia

countryBrazil
customerSiemens AG, Germany
end customerENTE (Empresa Norte de Transmissão de Energia), Brazil

FSC Maraba / Acailandia

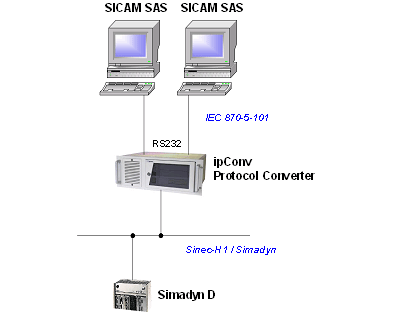

The Simadyn D control system was connected to the two control stations with the IPCOMM protocol converter ipConv.

Communication between the protocol converter and control station runs on the IEC 60870-5-101 protocol. Communication towards the Simadyn D is handled by Sinec-H1 and the proprietary Simadyn-D protocol.

The hardware platform (a 19" industrial PC) has a special 125 V DC power supply.

Used Products

ipConvipConvUniversal protocol converter for highest degree of flexibility
Details...
product/ipConv/en/ipConv_en.pdf

Used Protocol Stacks

IEC 60870-5-101, SlaveSimadyn-D, Master

Hardware

IPC194 19IPC194 19" 4U(no longer available)
The robust and flexible industrial PC. This PC industrial PC can be extended about a passive backplane with a high number of ISA and PCI cards.
