FSC HECHI

countryChina
customerSiemens AG, Germany
end customerCSG (China Southern Power Grid)

FSC HECHI

Three control stations (master stations) have to be linked up to the Simadyn D digital control system. Data transmission requires conversion from Simadyn-D to the IEC 60870-5-101, SC1801 and IEC 60870-5-104 protocols.
The protocol converters operate redundantly in hot standby mode. The passive device monitors the active protocol converter and takes the initiative if the active one fails. The RS232 line switching is implemented with our channel switch CS.

Background

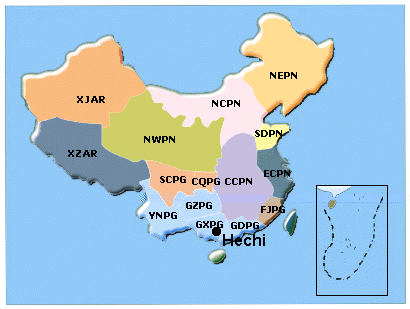

For this project, Siemens supplied 500 kV FSCs (Fixed Series Compensators) to the Chinese operator,  'China Southern Power Grid' (CSG), responsible power provider for Guangxi (GXPG) province.
CSG is part of the State Power Corporation of China (SP), their power grid covers all of China. High voltage lines (from 220 kV) stretch for over 146,000 km, making up 89% of all high voltage lines in China. Their capacity is 350 GVA, supplying 84% of Chinas overall capacity.

For further information please go to: State Grid Corporation of China (SGCC); Siemens(FACTS)

Picture Gallery

FSC Installation - 3 Phases FSC - 1 Phase IPCOMM protocol converter
500 kV substation Chinese tranport vehicle Transformer station

Used Products

ipConvipConvUniversal protocol converter for highest degree of flexibility
Details...
product/ipConv/en/ipConv_en.pdf

Used Protocol Stacks

SC1801, SlaveIEC 60870-5-104, Slave
IEC 60870-5-101, SlaveSimadyn-D, Master

Hardware

IPC194 19IPC194 19" 4U(no longer available)
The robust and flexible industrial PC. This PC industrial PC can be extended about a passive backplane with a high number of ISA and PCI cards.
Details...
hardware/IPC194/en/IPC194_manual_7_EN.pdf
CSCSChannel switch for coupling of two redundant devices to one communication line
Details...
hardware/CS/en/cs_Datasheet_2_1_5_EN.pdf
