SÜWAG

countryGermany
customerSiemens AG, Germany
end customerSUEWAG, Germany

SÜWAG

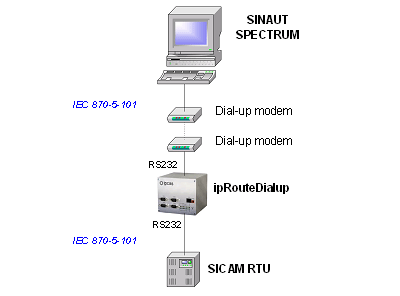

For this project our "Dial-up Adapter" ipRouteDialup has been used.

The used SICAM RTU doesn't own a dial-up function allowing the connection to the control station. This functionality - the initialization of a dial-up connection to the control station - is taken over by ipRouteDialup. Analogue, ISDN and GSM-Modems are supported. The transmission of the data occurs with IEC 870-5-101 in balanced or unbalanced mode.

The dial-up connection is initialized:
1. If an ASDU with a defined and configurable type identifier has been received from the substation.
2. As soon as 80 % of the telegram buffer (configurable capacity) are used.
3. Cyclical (configurable).

Used Products

ipRouteDialupipRouteDialupIEC 870-5-101 router to connect RTUs and SCADA systems over dialup lines
Details...
product/ipRouteDialup/en/ipRouteDialup.pdf

Hardware

HECHECCompact controller mountable on a DIN-rail - specially suited for decentral applications
Details...
hardware/HEC2/en/HEC_manual_K_3_2_EN.pdf
